Product introduction

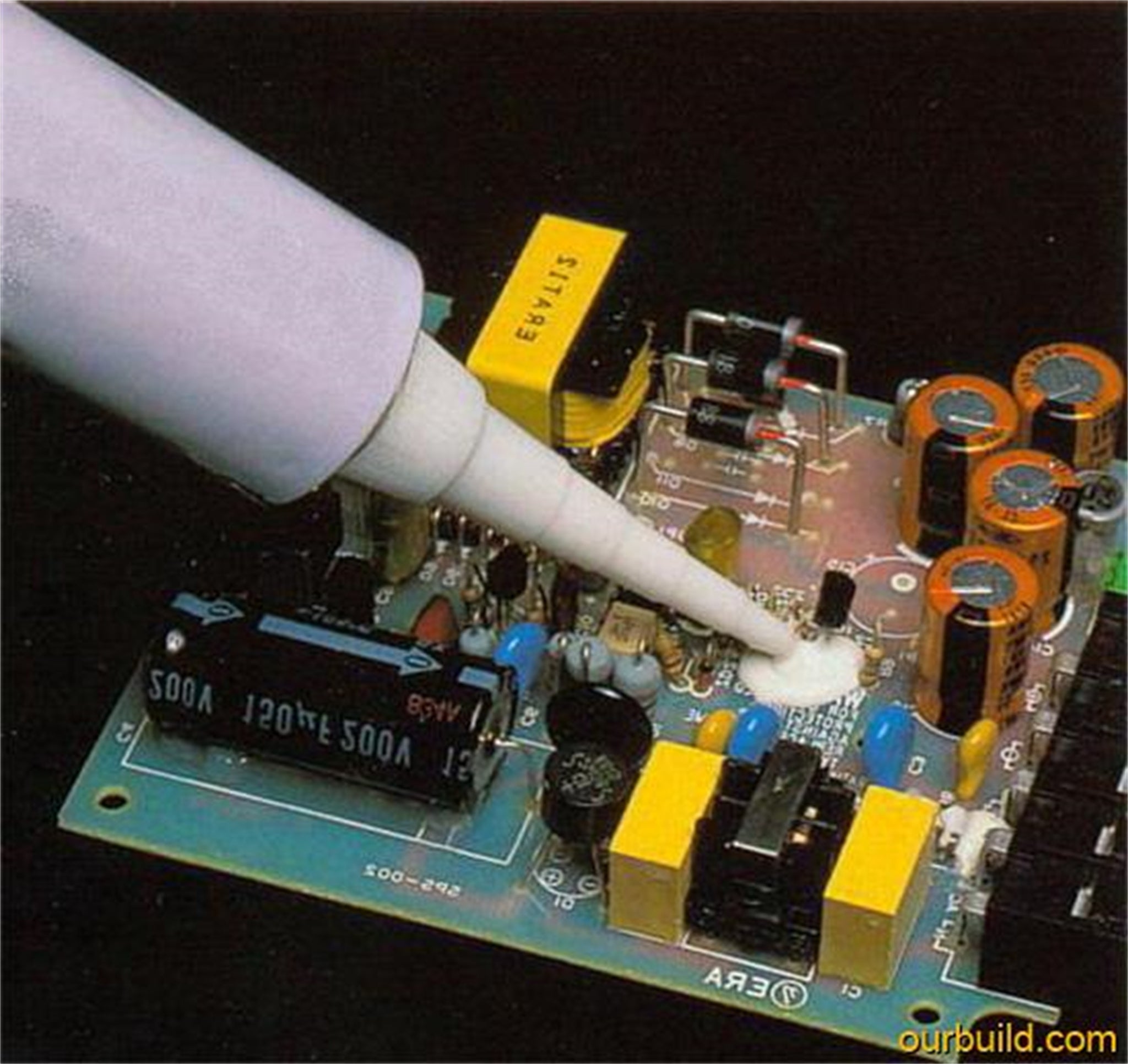

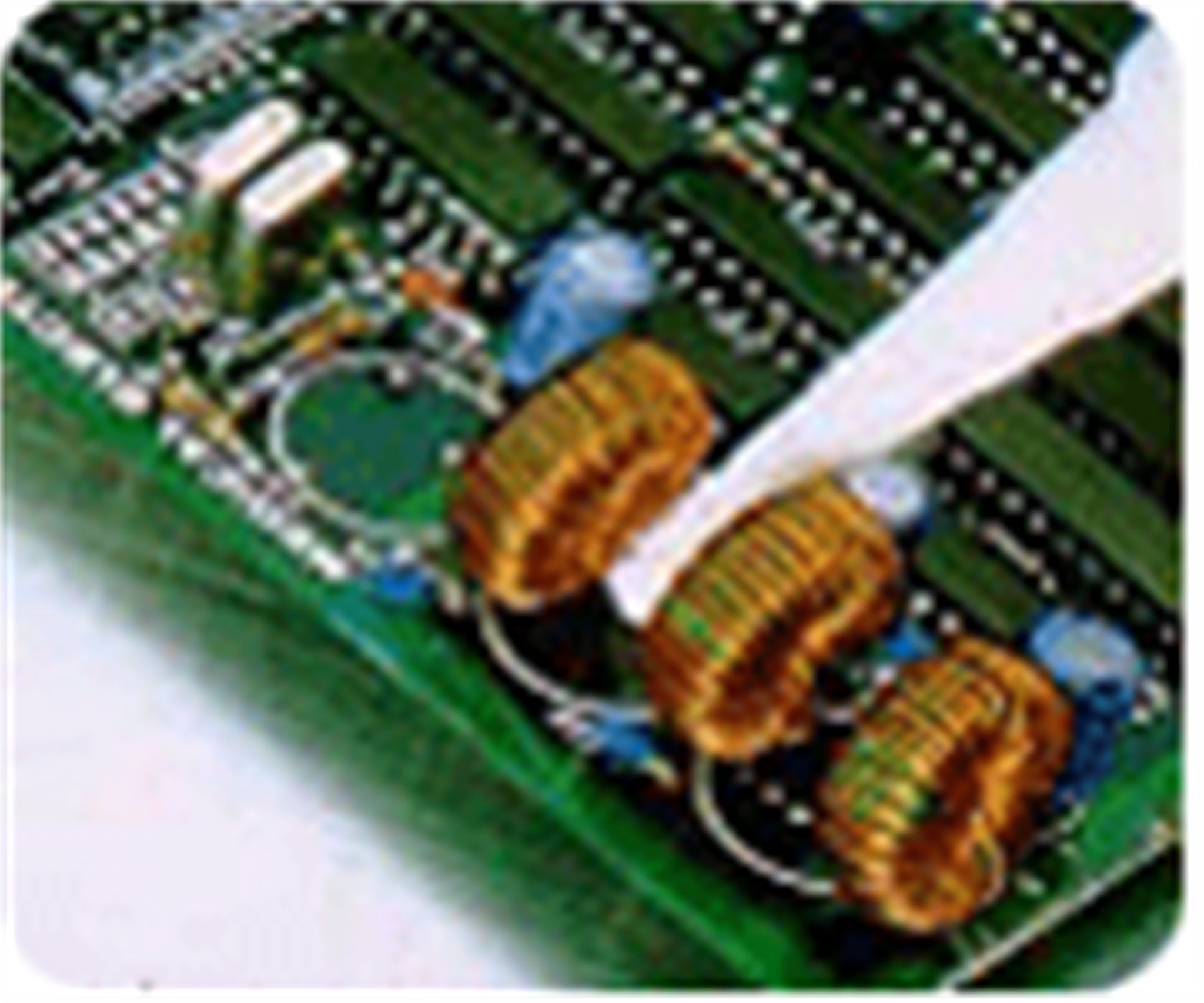

Sc-7111 silicone adhesive is a one component neutral silicone adhesive with excellent adhesion, fixation and sealing functions.It can also be used for the bonding and sealing of high-voltage parts such as lamps, underwater instruments, microwave ovens, electric irons, electric heating tubes, control panels of household appliances, CRT picture tubes, Dy deflection coils, etc. it can also be used for the bonding of PCB sensitive components, capacitors, triode sensors and led chips.

Product features

  1. It has good high and low temperature resistance, good weather resistance and strong adhesion. It can be used outdoors for a long time at - 60 ℃ ~ 230 ℃.
  2. It can adjust the viscosity for customers. It has good adhesion to metal, glass, ceramics and most plastics.
  3. The excellent properties of silicone material make it dust-proof, anti-corrosion, insulation, anti ultraviolet radiation and delay aging for the electronic components after encapsulation.

Product parameters

sulfur

turn

front

Test items

index

Exterior

White, black, gray paste

Specific gravity g / ml

1.05~2.0

Surface dry time TFT min

5~20

sulfur

turn

after

Hardness Jisa

10~40

Elongation at break%

150~250

Tensile strength kgf / cm2

≥10.0

Volume resistivity Ω. Cm

≥2.0×1015

Strength of breakdown voltage kV / mm

18~25

Dielectric constant 60Hz

3.0

Dielectric loss factor dielectric loss / 60Hz

0.003

Low molecular content (D3 ~ D10) ppm

300

Thermal conductivity (w / m.k)

≥0.8

Flame retardancy

UL94 V-0





Product introduction

Sc-7607 thermal conductive silicone adhesive is widely used in heat dissipation of electronic and electrical appliances, heat dissipation bonding and sealing of power supply, transistor and electrothermal regulator, PTC bonding and insulation, etc.It is especially suitable for bonding and sealing with high requirements for flame retardancy and thermal conductivity.

Product features

sc-7607 is a one component neutral room temperature curing silicone rubber.Through condensation reaction with water in the air, it releases low molecular weight to cause cross-linking, and vulcanizes into high-performance elastomer.The cured elastomer has good stability, high and low temperature resistance, ultraviolet resistance, ozone aging resistance and excellent electrical properties, as well as good thermal conductivity and flame retardancy.It has good adhesiveness to most metal and non-metal materials, can seal and bond a variety of electronic components, and does not pollute the surrounding environment.This product has passed UL flame retardant certification.

Product parameters

sulfur

turn

front

Test items

index

Exterior

White, black, gray paste

Specific gravity g / ml

1.30~1.40

Surface dry time TFT min

5~20

sulfur

turn

after

Hardness Jisa

45~55

Elongation at break%

150~250

Tensile strength kgf / cm2

≥10.0

Volume resistivity Ω. Cm

≥2.0×1015

Strength of breakdown voltage kV / mm

18~25

Dielectric constant 60Hz

3.0

Dielectric loss factor dielectric loss / 60Hz

0.003

Low molecular content (D3 ~ D10) ppm

300

Thermal conductivity (w / m.k)

≥0.8

Flame retardancy

UL94 V-0
